Heron

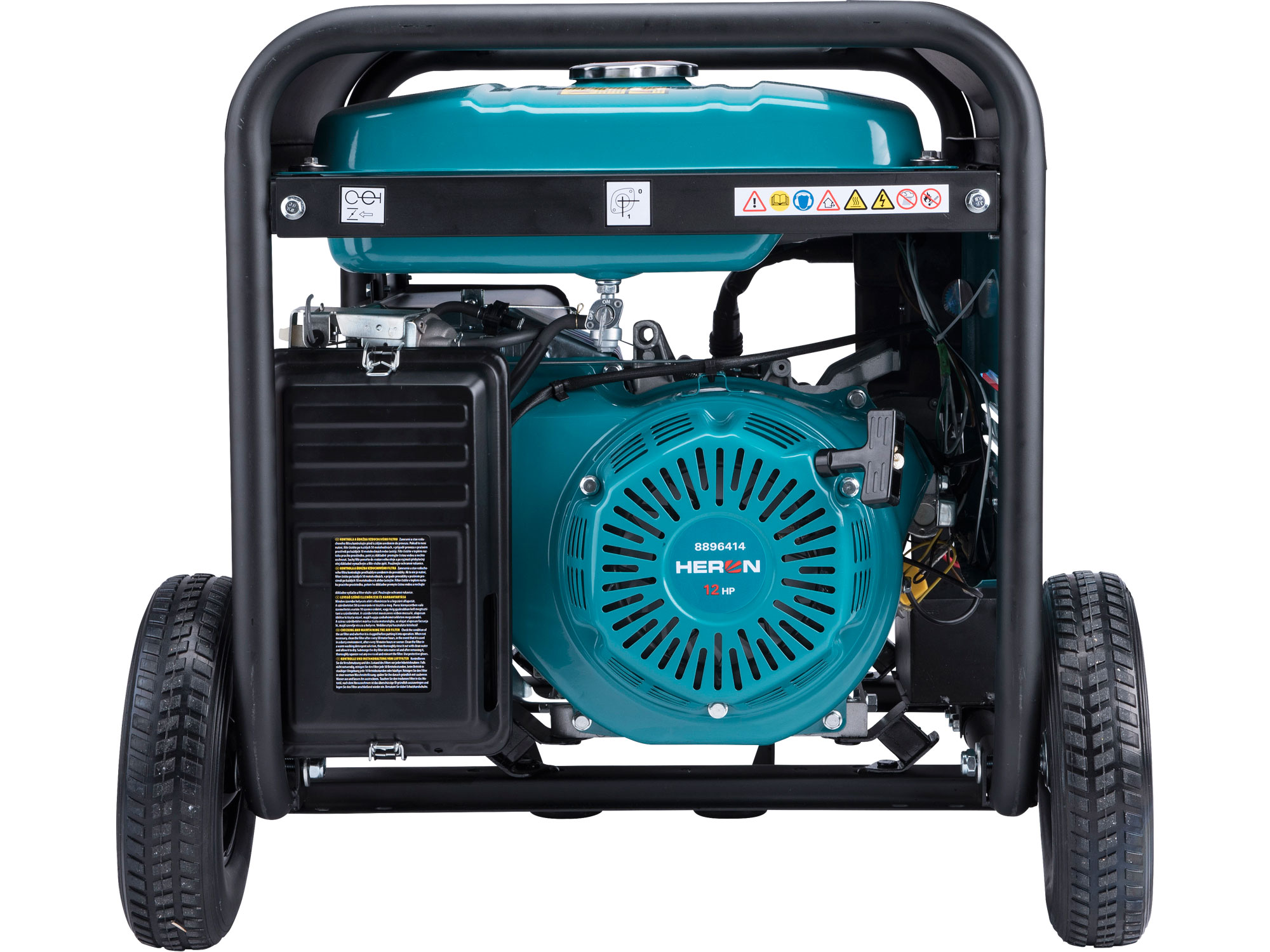

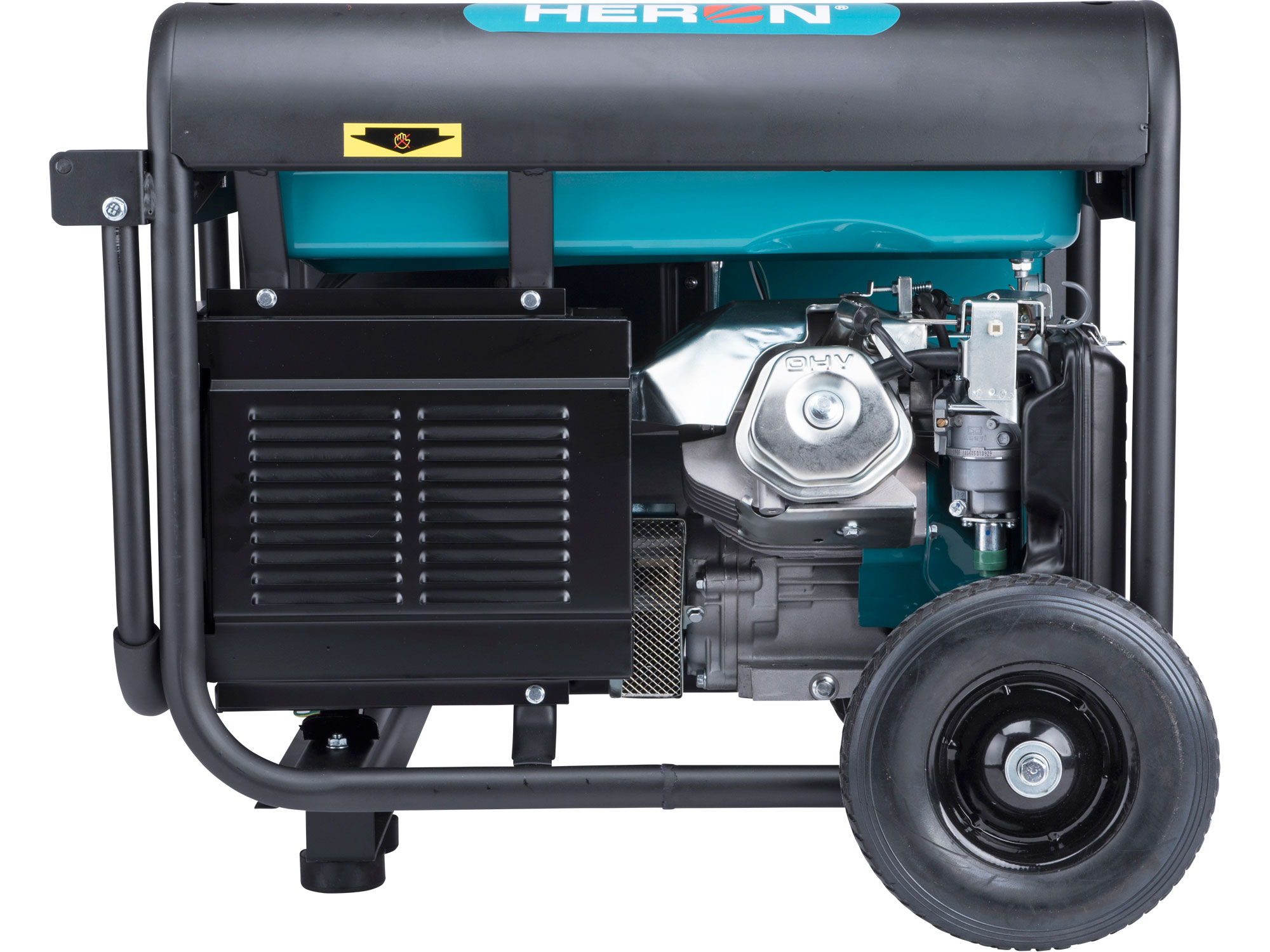

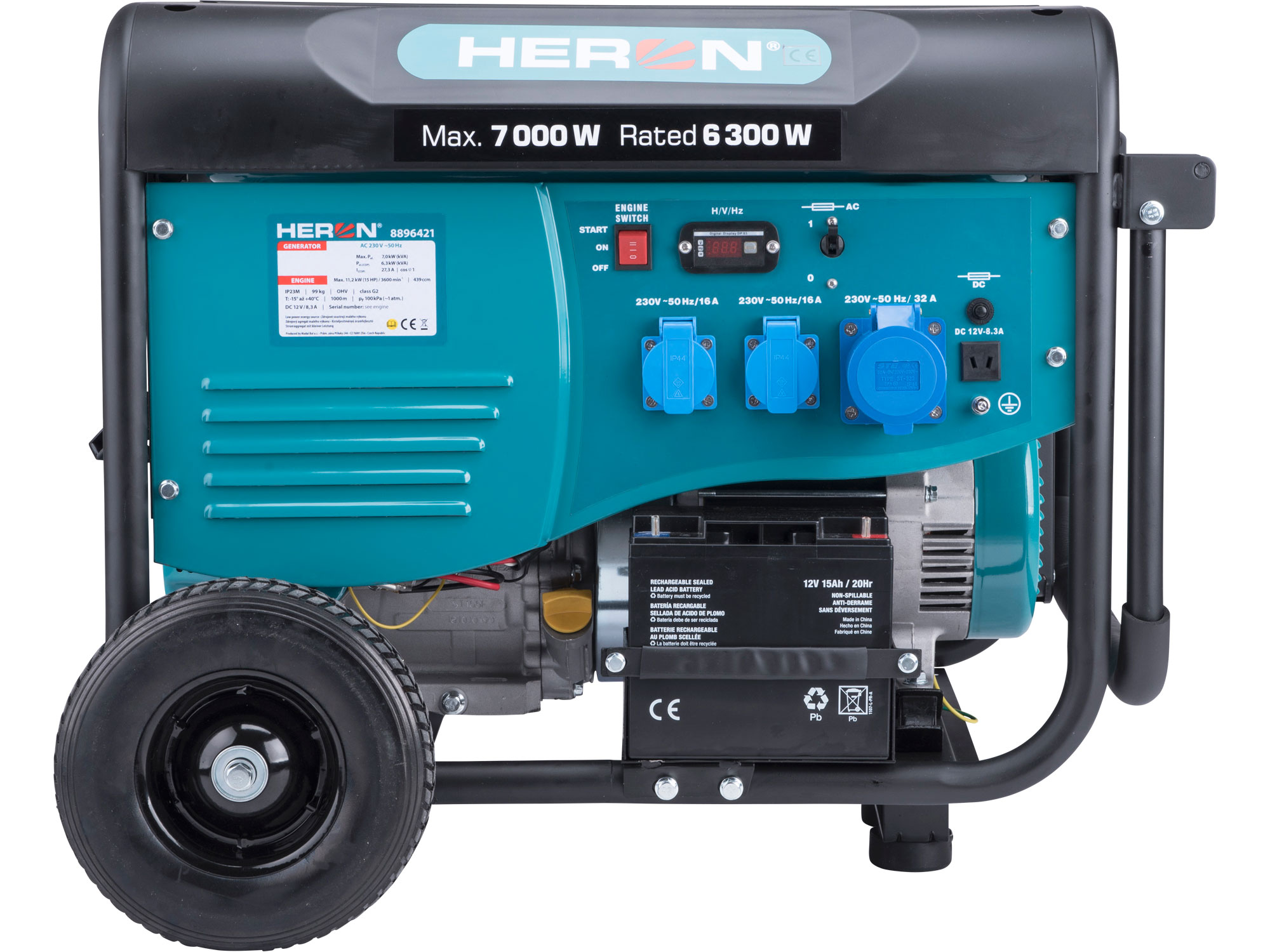

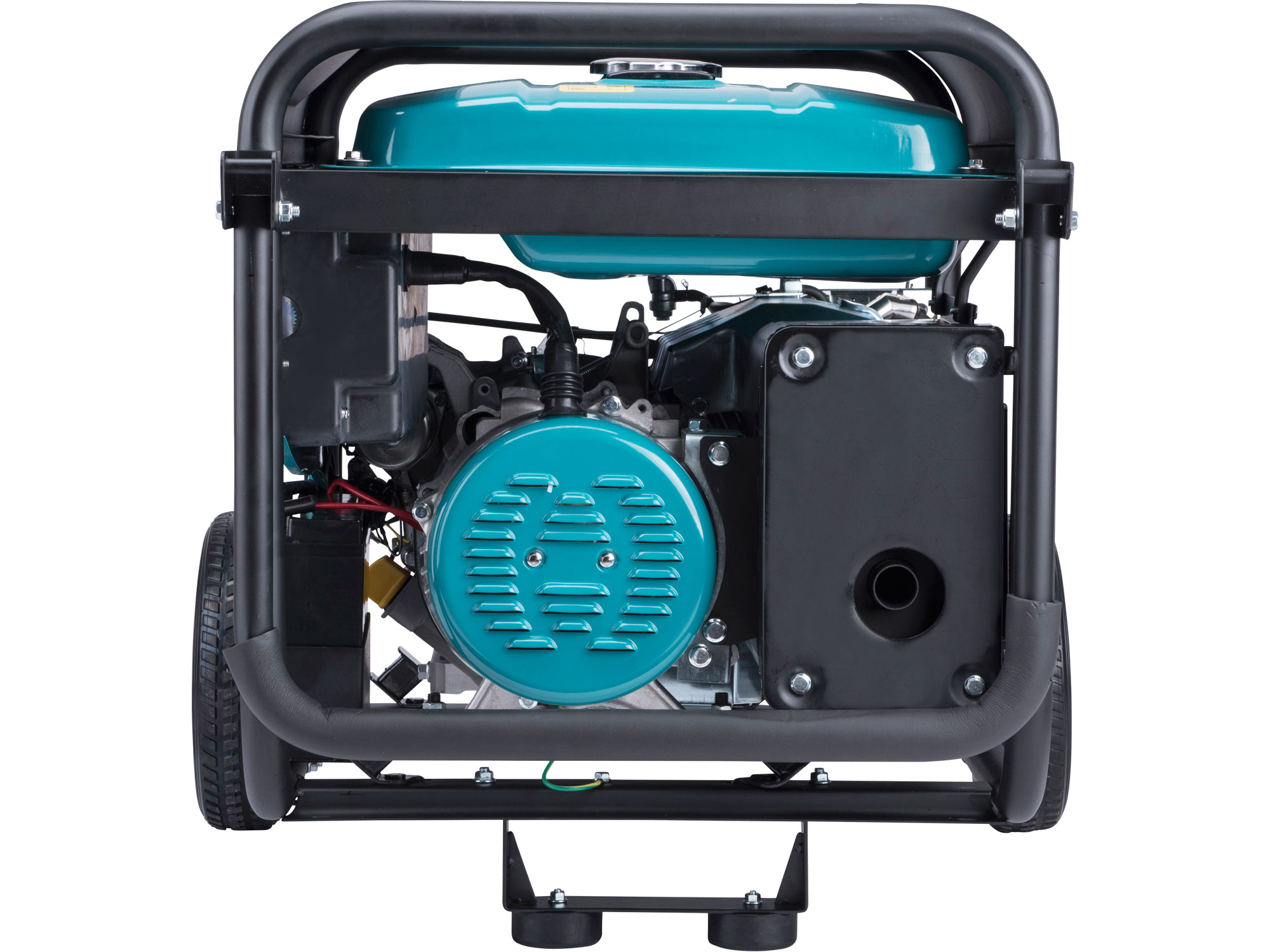

engine generator 7kW, 3x AC 230V, DC12V, 15HP, OHV, 439ccm, manual and electric start, wheels

Item No.
8896421
EAN
8595126981026

This excellent model with a powerful motor, smart electronics and a single-phase covered 230V / 32A socket is an uncompromising helper wherever high power single-phase current is required.

$ 2,495.00
incl. tax
Regular price

Not active

Not active

Currently not available

free shipping in february

or find in-store
Description
This excellent model with a powerful motor, smart electronics and a single-phase covered 230V / 32A socket is an uncompromising helper wherever high power single-phase current is required. Ideal for welding, it is excellently used in construction, during assembly work, as a backup source for companies and houses, in mobile service centers or cars, as an alternative source of power in the workshop and in nature.
Main Features
  • tank size allows up to 13 hours of continuous operation (depending on load)
  • regulation of the output voltage by the AVR system protects your electrical appliances from damage (provided that the correct connection method is observed)
  • easily visible digital multifunction meter with the function of operating hours, voltmeter, frequency, current operating hours
  • it is possible to connect welding inverters to this power plant up to a maximum input of 5.0 kW / 230V, other welding units up to a maximum input of 5.5 kW / 230V
  • covered socket 230V / 32A allows to power appliances with power input up to 6.3kW
  • electric start of the generator (8896421) is provided by AGM maintenance-free battery with a long service life recharged by the operation of the generator

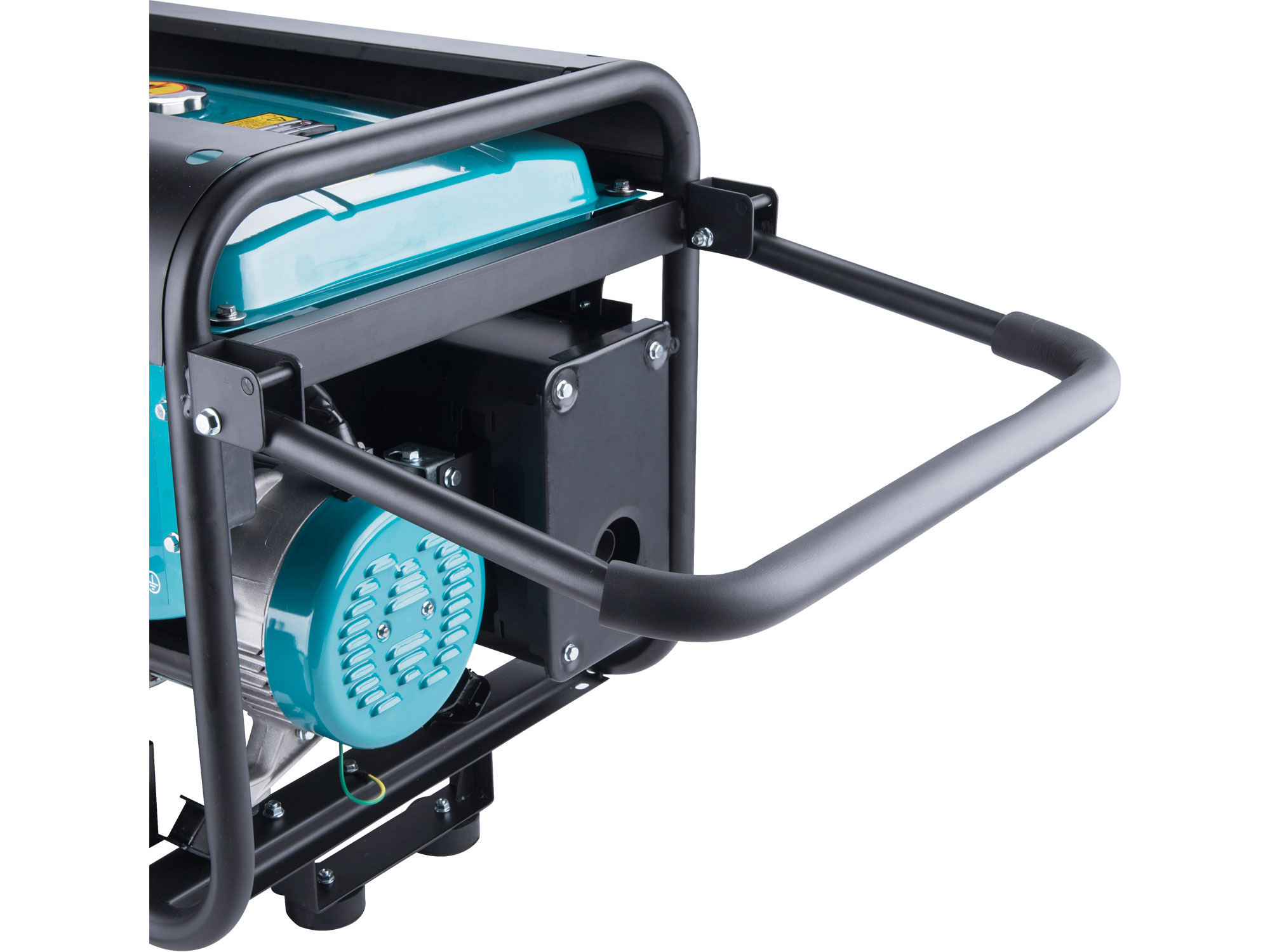

  • the supplied chassis significantly simplifies transport and the new handle allows easy handling of the control panel with one hand
Technical Specifications

number of phases: 1f

max. power: 7,0kW

rated power: 6,3kW

voltage/frequency: 230V/50Hz

power factor: 1

cylinder volume: 439ccm

max. engine power: 11,2kW (15HP)/3600min-1

consumption: min. 0,45l/kWh

tank volume: 25l

AC rated current: 27,3A/230V

DC rated current: 8,3A/12V

IP code: IP23

max. consumption from 230V socket: < 3,5kW(16A)/ < 6,3kW(32A)

weight with electric start: 95,1kg

dimensions (hwd): 64×70×80cm
