Heron

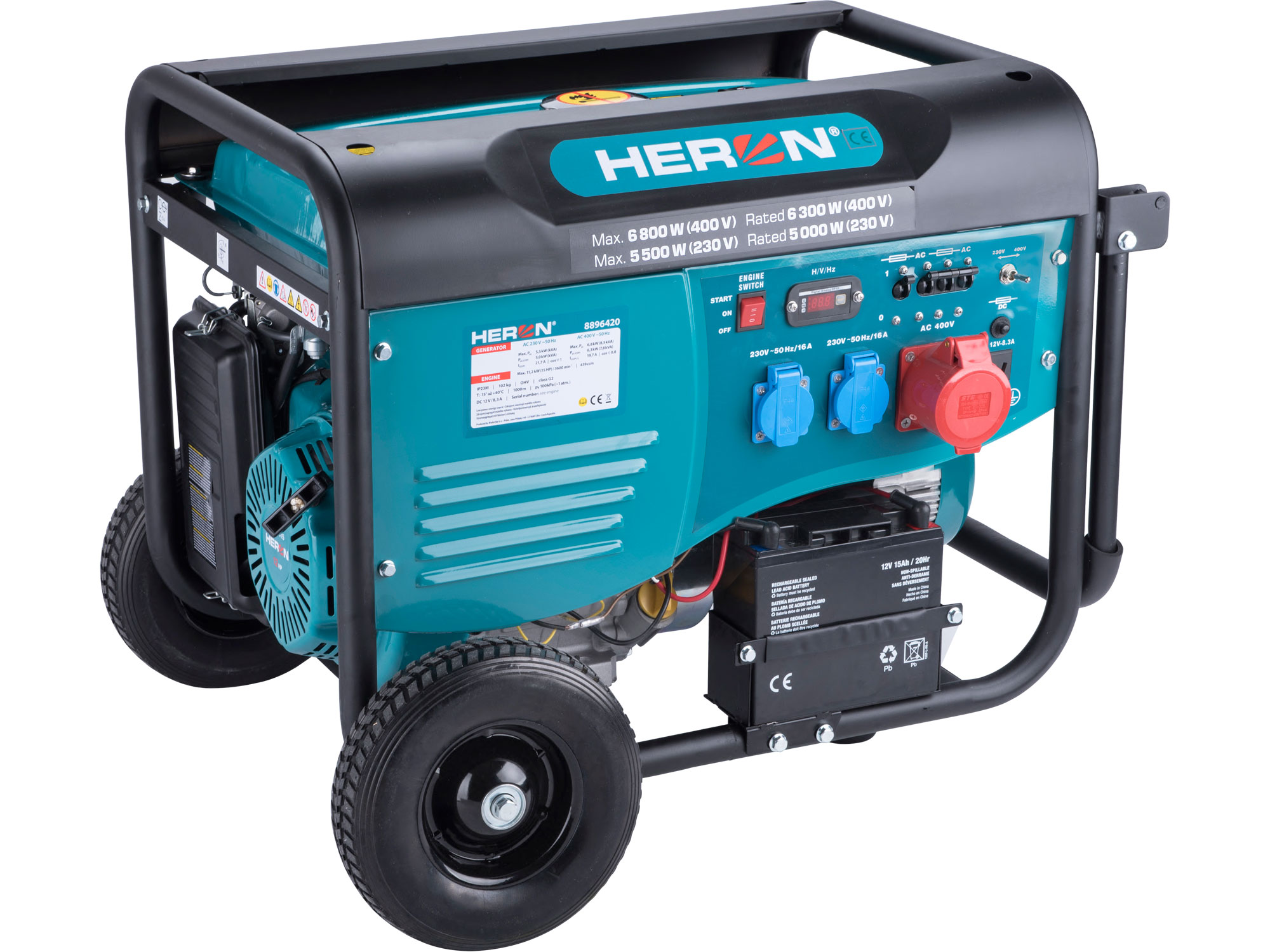

engine generator 6,8kW, AC 230/400V, DC12V, 15HP, OHV, 439ccm, manual and electric start, wheels

Item No.
8896420
EAN
8595126981019

Thanks to a powerful motor and a three-phase alternator, this generator model is designed for use in places where either a strong three-phase power supply or two single-phase power supplies with high power input are required.

$ 2,795.00
incl. tax
Regular price

Currently not available

free shipping in february

or find in-store
Description
Thanks to a powerful motor and a three-phase alternator, this generator model is designed for use in places where either a strong three-phase power supply or two single-phase power supplies with high power input are required. Thanks to its excellent parameters, performance, electronics and reliability, it is an ideal choice without compromise for mobile service centers, demanding operations or as a source of electricity for construction or workshop.
Main Features
  • Tank size allows up to 13 hours of continuous operation (depending on load)
  • regulation of the output voltage by the AVR system protects your electrical appliances from damage (provided that the correct connection method is observed)
  • easily visible digital multifunction meter with the function of operating hours, voltmeter, frequency, current operating hours
  • it is possible to connect welding units supplied with voltage 400V to max. input 5kW / 400V and 3kW / 230V to this generator
  • a separately protected 230V power supply circuit at 26.1A allows to supply two appliances with high power consumption.
  • the supplied chassis significantly simplifies transport and the new handle allows easy handling of the control panel with one hand
  • electric start of the generator (8896420) is provided by AGM maintenance-free battery with a long service life recharged by the operation of the generator
Technical Specifications

number of phases: 3f

max. power: 6,8kW/8,5kVA (400V)/5,5kW (230V)

rated power: 6,3kW/7,8kVA (400V)/5,0kW (230V)

voltage/frequency: 400V/50Hz, 230V/50Hz

power factor: 0,8/1

cylinder volume: 439ccm

max. engine power: 11,2kW (15HP)/3600min-1

consumption: min. 0,45l/kWh

tank volume: 25l

AC rated current: If 11,4A/400V, 21,7A/230V

DC rated current: 8,3A/12V

IP code: IP23

max. consumption from 230V socket: < 3,5kW

weight with electric start: 98kg

dimensions (hwd): 64×70×77cm
