Extol Premium

DC Inverter MMA Welder

Item No.
8896024
EAN
8595126967372

The basic Extol® Premium welding inverter with computer control is a second-generation welding machine for the MMA welding method, in which modern microprocessor IGBT technology is used. You can easily set the required current for work on the clear panel.

$ 224.99
incl. tax
Regular price

Not active

Not active

Currently not available

free shipping in february

or find in-store
Description
The basic Extol® Premium welding inverter with computer control is a second-generation welding machine for the MMA welding method, in which modern microprocessor IGBT technology is used. You can easily set the required current for work on the clear panel. The inverter comes with cables and basic accessories, so you can start welding immediately. The 120A welding current is perfectly sufficient for small-scale welding, because you still can't use higher currents on the most common 16A circuit breaker. The inverter is equipped with the following functions: HOT START - facilitates ignition of the arc by the initial automatic increase of the ignition current compared to the originally set value of the welding current ARC FORCE - stabilization of the ignited welding arc during welding depending on the length of the welding arc. If the electrode sticks as the arc shortens, the inverter will increase the current. In the case of a long arc, the inverter reduces the current, creating time for the electrode to approach the material without the arc going out. ANTI STICK - automatic reduction of the welding current to a minimum (approx. 10A) if the electrode sticks, which cools the electrode and can then be easily torn off product description
Main Features
  • constant output welding current
  • during welding, there is a lower spray of material from the weld pool which creates a quality weld
  • has automatic protection in case of undervoltage, overvoltage, overheating, etc. If the protection is activated, the warning light on the front panel will light up and the output current will be disconnected
  • thanks to its small size and low weight, the inverter can easily transported.
Technical Specifications

voltage/frequency: 230V/50Hz

welding current: 10-120A

no-load voltage: 53V

max. effective power supply: 12A

protection at maximum current: 16A

duty cycle MMA: 40°C - 120A/20%, 80A/60%, 60A/100%

electrodes diameter: 1,6-4,0mm

weight: 2,8kg

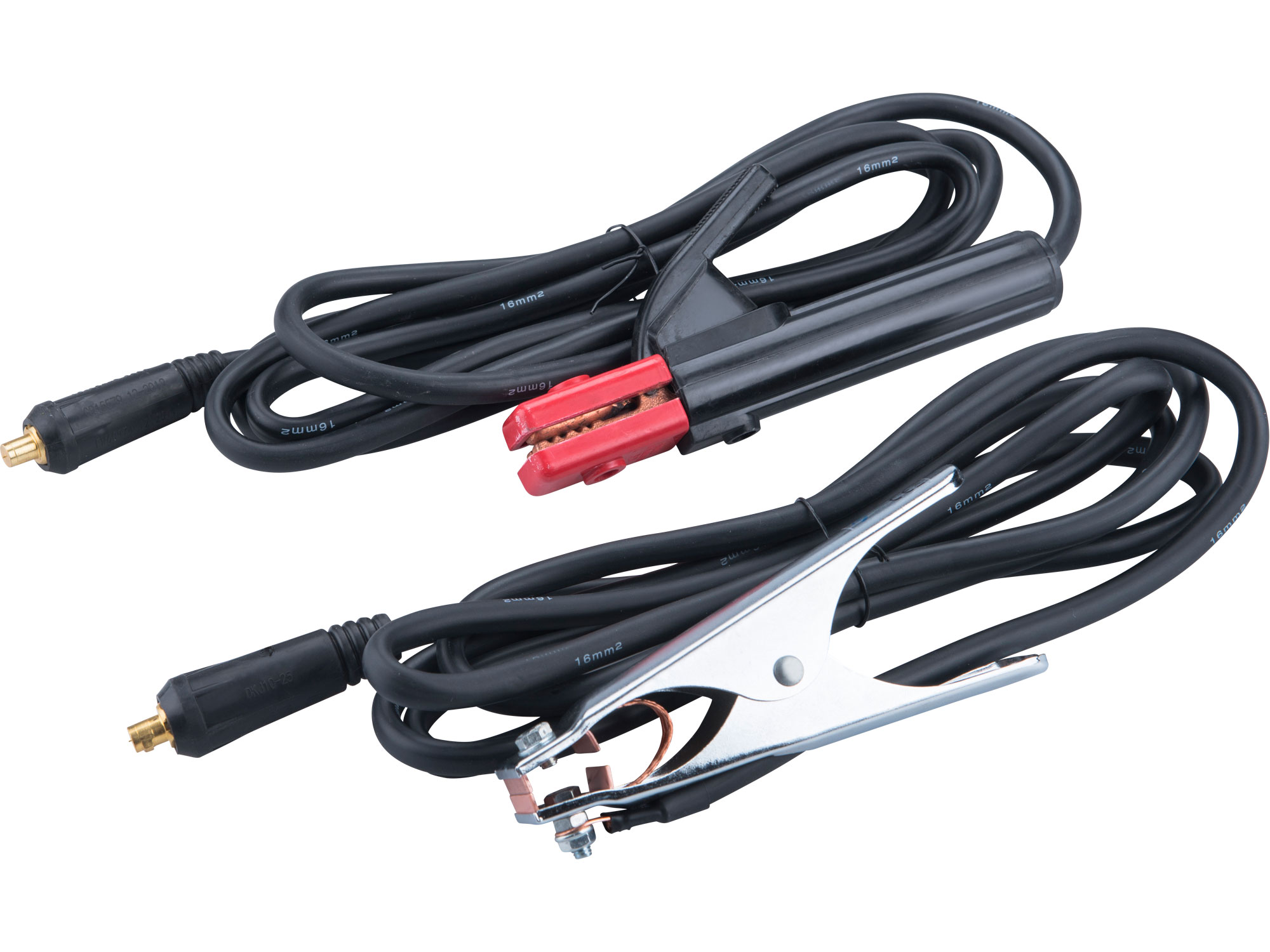

accessories: welding and grounding cable, hood, chipping hammer and brush
